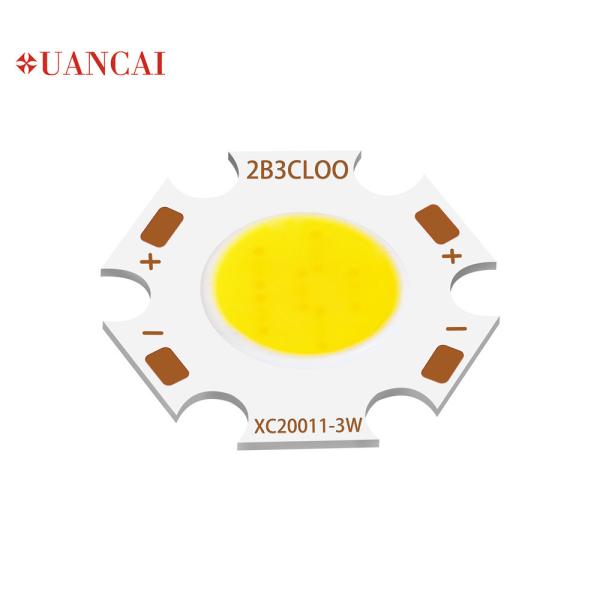

140LM Bridgelux Flip Chip COB LED

Name: 140LM Bridgelux Flip Chip COB LED
Brand: XUANCAI
Price: 0.1 USD

China 140LM Bridgelux Flip Chip COB LED wholesale

Brand Name : XUANCAI

Model Number : DL-20/11MM

Certification : CE ROHS LM-80

Place of Origin : China

MOQ : 100

Price : $0.1-$0.5/PCS

Payment Terms : T/T, Western Union, Paypal , Alibaba trade assurance

Supply Ability : 10000PCS / Month

Delivery Time : 3-5 days

Packaging Details : Blister box packaging

Product Name : DL-20/11 LED COB Chip

Power : 5W

Voltage : 15-17V

Current : 300mA

Luminous Efficacy : 130-140LM/W

CRI : 70/80

Color Temperature : 2700K/ 3000K/ 4000K/ 6000K/ 7000K

Viewing angle(°) : 120

Application : Downlight/ Tracklight/ Spotlight/ Miner Light

Chip Material : US Bridgelux

Contact Now

3W 5W 7W Flip Chip High Efficacy 130-140LM/W White LED COB Chip Round Shape DL-20/11MM

Advantage: Flip chips generally have particularly good heat dissipation. Our most distinctive advantage is that we use imported US Bridgelux chips and 99.99% pure gold wires and mirror Aluminium board. So that our products have High luminous efficacy , high CRI and good color tolerance(3000k &4000k -2 step macAdam ellipse, 6000K-3 step MacAdam)

Products details

Item	DL-20/11MM LED COB CHIP
Size	DL-20/11MM
Power	3W/ 5W / 7W
Current	300mA
Voltage	15-17V
Luminous Efficacy	130-140LM/W
CRI	80/70

Parameters

Size	Color Temperature (CCT)	CRI(Ra)		Luminous Flux(lm)		Efficacy ( lm/W )	Current (mA)	Voltage (V)
		Ra	R9	Luminous Flux(lm)		Efficacy ( lm/W )	Current (mA)	Voltage (V)
		Min.	Min.	Min.	Typ.	Typ.	(mA)	Min.	Typ.	Max.
DL-20/11MM	2700K	80	0	466	491	106	300	15	15.5	16
DL-20/11MM	3000K	80	0	486	512	110	300	15	15.5	16
DL-20/11MM	3500K	80	0	501	527	113	300	15	15.5	16
DL-20/11MM	4000K	80	0	505	532	114	300	15	15.5	16
DL-20/11MM	5000K	80	0	496	522	112	300	15	15.5	16

Absolute Maximum Ratings

Parameter	Symbol	Rating
Forward Current	I_F	370mA
Reverse Current	I_R	1mA
Operating Temperature	T_OPR	-30℃ To +75℃
Storage Temperature	Tst	-30℃ To +75℃
Case Temperature	Tc	85℃
Junction Temperature	T_J	125℃
Soldering Temperature	T_SOL	350℃± 10℃ For 5 Seconds
ESD Sensitivity	ESD	2000V HBM

Package Dimensions

Applications

140LM Bridgelux Flip Chip COB LED

Trade Show

140LM Bridgelux Flip Chip COB LED

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
 Secondly We quote according to your requirements or our suggestions.
 Thirdly customer confirms the samples and places deposit for formal order.
 Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 2-3years warranty to our products.

Q7: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
 than 0.2%.
 Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
 defective batch products, we will repair them and resend them to you or we can discuss the solution i
 ncluding re-call according to real situation.
