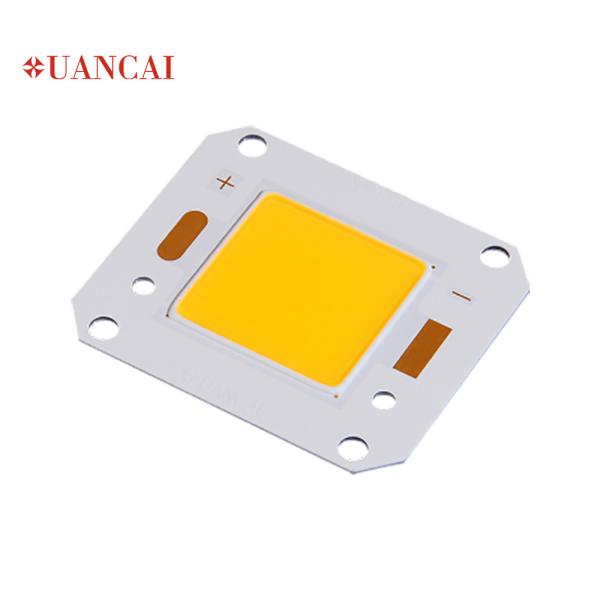

LED Module High Brightness 140-150LM/W 50W 60W Bridgelux Chip Copper Base LED COB Light For Flood Light/ Street Light
Product Description
| Product Information |
| Size | TL-40*46/24*24MM |
| Product name | 50W LED COB CHIP |
| Power | 50W |
| Voltage | 30- 33V |
| CCT | Warm White/ Natural White/ Cool White |
| Chip Material | InGaN |
| CRI | 80/70 |
| Luminous efficacy Warranty | 130-140LM/W 3 Years |
Mechanical Dimensions
Features
◆ Mechanical Dimensions : 46*40*2.2(mm)
◆ Package Structure : Mirror Aluminium Base Chip on Board/ Copper Base Chip on Board
◆ CRI(Ra) :Min.80,Min90
◆ Nominal CCT :2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K
◆ Chromaticity Range : 3-step MacAdam Ellipse
◆ RoHS compliant
◆ Better die arrangement for optics
◆ Wide range of luminous fluxand high efficacy
Electro Optical Characteristics
| Product Code | Nominal CCT | CRI(Ra) | Luminous Flux(lm) | Efficacy ( lm/W ) | Forward Current (mA) | Voltage (V) |
| | | Ra | R9 | | | | |
| | | Min. | Min. | Min. | Typ. | Typ. | | Min. | Typ. | Max. |
| XC4624-M1010 -A2780-E31 | 2700K | 80 | 0 | 6209 | 6536 | 135 | 1500 | 30 | 32.3 | 34 |
| XC4624-M1010 -A2790-C31 | | 90 | 50 | 5229 | 5504 | 114 | 1500 | 30 | 32.3 | 34 |
| XC4624-M1010 -A3080-F31 | 3000K | 80 | 0 | 6481 | 6822 | 141 | 1500 | 30 | 32.3 | 34 |
| XC4624-M1010 -A3090-C31 | | 90 | 50 | 5392 | 5676 | 117 | 1500 | 30 | 32.3 | 34 |
| XC4624-M1010 -A3580-F31 | 3500K | 80 | 0 | 6645 | 6994 | 144 | 1500 | 30 | 32.3 | 34 |
| XC4624-M1010 -A3590-D31 | | 90 | 50 | 5719 | 6020 | 124 | 1500 | 30 | 32.3 | 34 |
| XC4624-M1010 -A4080-F31 | 4000K | 80 | 0 | 6699 | 7052 | 146 | 1500 | 30 | 32.3 | 34 |
| XC4624-M1010 -A4090-D31 | | 90 | 50 | 5882 | 6192 | 128 | 1500 | 30 | 32.3 | 34 |
| XC4624-M1010 -A5080-F31 | 5000K | 80 | 0 | 6536 | 6880 | 142 | 1500 | 30 | 32.3 | 34 |
| XC4624-M1010 -A5090-D31 | | 90 | 50 | 5828 | 6134 | 127 | 1500 | 30 | 32.3 | 34 |
| XC4624-M1010 -A6080-F31 | 6000K | 80 | 0 | 6536 | 6880 | 142 | 1500 | 30 | 32.3 | 34 |
| XC4624-M1010 -A6090-D31 | | 90 | 50 | 5664 | 5962 | 123 | 1500 | 30 | 32.3 | 34 |
Absolute Maximum Ratings
| Parameter | Symbol | Rating |
| Forward Current | IF | 2400mA |
| Reverse Current | IR | 1mA |
| Operating Temperature | TOPR | -30℃ To +75℃ |
| Storage Temperature | Tst | -30℃ To +75℃ |
| Case Temperature | Tc | 85℃ |
| Junction Temperature | TJ | 125℃ |
| Soldering Temperature | TSOL | 350℃± 10℃ For 5 Seconds |
| ESD Sensitivity | ESD | 2000V HBM |
Features:
1. Copper base will have a good heat dissipation, Copper base is suitable for high temperature areas, such as Egypt, Kuwait, Libya....
2. Aluminium base has relatively high light efficiency
3. This type led cob chip mainly used in Flood light/ Street Light/ project Light
