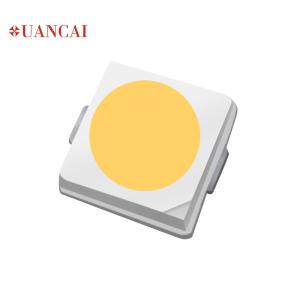

3000k 4000K 6000k 1W 3030 Super Bright Smd Led

Name: 3000k 4000K 6000k 1W 3030 Super Bright Smd Led
Brand: XUANCAI
Price: 0.019 USD

China 3000k 4000K 6000k 1W 3030 Super Bright Smd Led wholesale

Brand Name : XUANCAI

Model Number : SMD 3030 1w

Certification : CE ROHS

Place of Origin : China

MOQ : 4000

Price : $0.019-$0.024

Payment Terms : T/T, Western Union, Paypal , Alibaba trade assurance

Supply Ability : 10000M / Month

Delivery Time : 3-5 days

Packaging Details : Blister box packaging

Product Name : SMD 3030

Watt : 1w

Current : 150mA / 300mA

Voltage : 6v / 3v

Color Temperature : 3000k / 4000K / 6000k

Lumens : 130-140lm

Chip brand : US Bridgelux

Warranty : 3 years

CRI : 70/80

Contact Now

1W 3030 SMD LED Super Bright 130-140LM Good Quality SMD LED 3 Years Warranty Gold Wire CE ROHS

Product Description

Product Name	SMD 3030
Current	150mA / 300mA
Voltage	6v / 3v
CRI	70/80
Lumens	130-140lm
Chip Brand	US Bridgelux
Chip Brand Color Temperature	US Bridgelux 3800-4200k/ 2800-3150K / 5800-6300k / 6500-7500K

Feature

1.1 Package Size: 3.0*3.0*0.65mm

1.2 Light-emitting Type

1.3 Soldering Method: SMT Reflow Soldering

1.4 Emitted Color: White

1.5 RoHS standard complied.

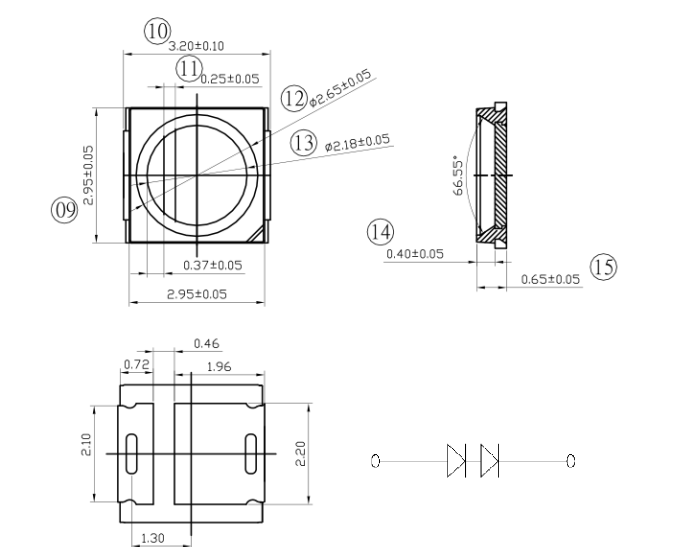

Package Outlinke Dimension

3000k 4000K 6000k 1W 3030 Super Bright Smd Led

Notes:

1．All dimensions are in millimeters (inches).

2．Tolerance is ±0.10mm unless otherwise specified.

Electrical-optical characteristics ( Ta=25)

Parameter	Symbol	Min.	Typ.	Max.	Unit	Condition
Forward Voltage	Vf	5.8	----	6.4	V	I_F=150mA
Luminous Intensity	Lm	130	-----	140	lm
Viewing Angle	2θ_1/2	----	120	----	deg
Color rendering index	RA	80	---	--	%
Correlated Color Temperature	CCT	5800	---	6300	K
Reverse Current	I_R	----	----	1	μA	VR=5V

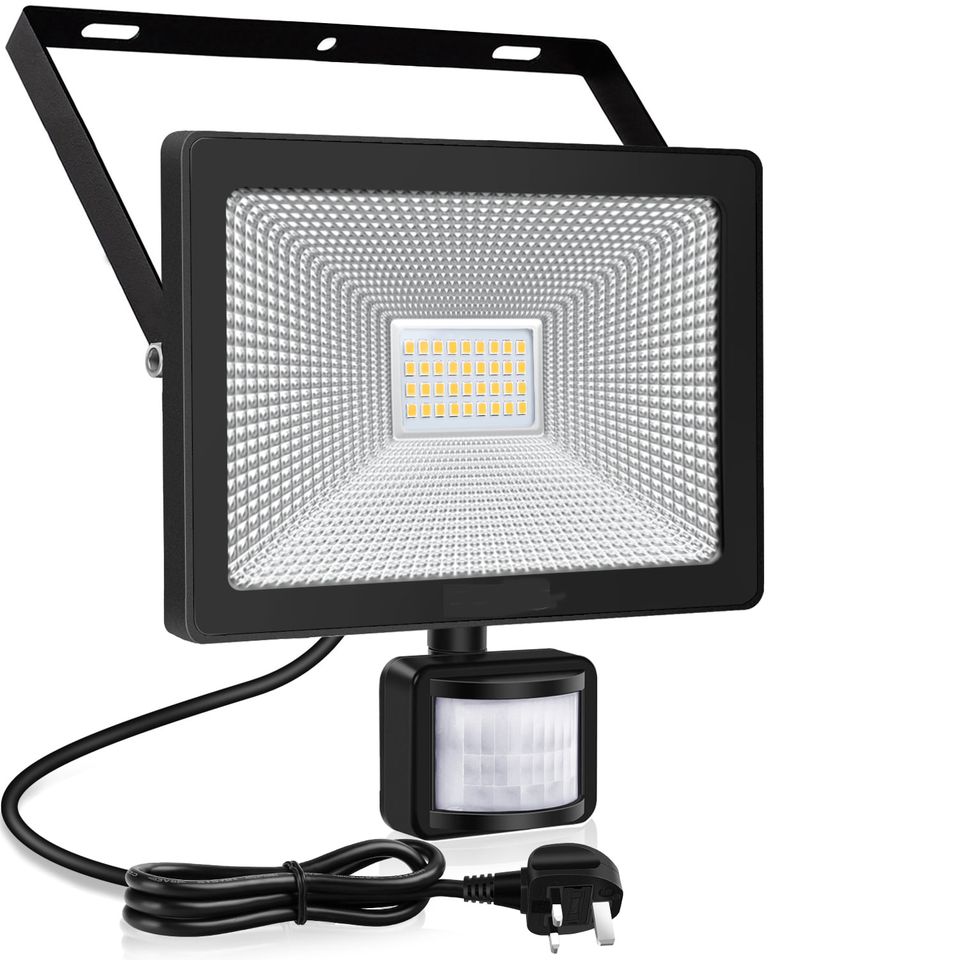

Applications

3000k 4000K 6000k 1W 3030 Super Bright Smd Led
