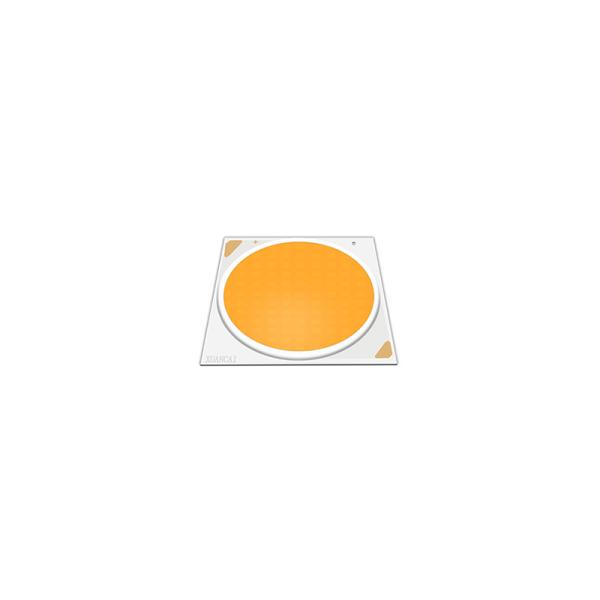

36V 24W 30W 36W 42W US Bridgelux 4000K CRI98 High Cri LED Chip

Brand Name : XUANCAI

Model Number : CL-17.85*17.85/14MM LED COB CHIP

Certification : CE ROHS LM-80

Place of Origin : China

MOQ : 50

Price : $1-$ 2.5/ PCS

Payment Terms : T/T, Western Union, Paypal , Alibaba trade assurance

Supply Ability : 100000M / Month

Delivery Time : 3-5 days

Packaging Details : Blister box packaging

Product Name : CL-17.85*17.85/14MM LED COB CHIP

Size : 17.85*17.85/14MM

Power : 30W

Input Voltage : 36-39V

Current : 750mA

CCT : 2700K, 3000K, 4000K, 5000K, 6000K, 7000K

CRI : 98

Chip Brand : Bridgelux Chip

Certificate : CE ROHS LM-80

Application : Shopping Mall Light/ Hotel Light/ Commercial Light

Warranty : 3 Years

Spanlife : 50,000 Hours

Contact Now

36V High CRI98 24W 30W 36W 42W US Bridgelux Gold Wire Led Cob Chip 2700K 3000K 4000K 6000K
This type LED Array has high CRI,the higher performance this type LED Arrays allow lighting manufacturers to achieve the same or better performance with a smaller LES, enabling a radical reduction in system size and cost. XL-13.5*13.5/11MM LED Arrays share the same physical design as the previous generation, allowing lighting manufacturers to leverage the existing optical, mechanical and electrical design elements to accelerate time to market without additional cost. Available in 1‑step, 2-step and 5-step EasyWhite® bins, this type LED source delivers high CRI and high brightness output in a single, easy-to-use package that eliminates the need for reflow soldering.

Product Description

Product Information
Size
 CL-17.85*17.85/14MM
Product name
30W LED COB CHIP
Power
 30W
Voltage
 36-39V
Current
750mA
Chip Brand
US Bridgelux
CRI

98
Luminous efficacy
130-140LM/W

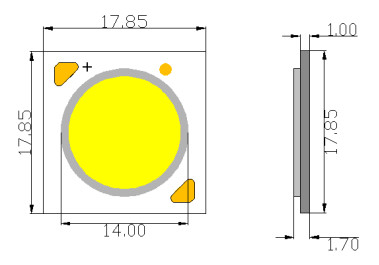

Mechanical Dimensions

36V 24W 30W 36W 42W US Bridgelux 4000K CRI98 High Cri LED Chip

Electro Optical Characteristics

Product Code

Nominal CCT

 CRI(Ra) Luminous Flux(lm) Efficacy ( lm/W )

Forward

Current

(mA)

Voltage

(V)
Ra R9
Min. Min. Min. Typ. Typ. Min. Typ. Max.
17.85*17.85/14MM 2700K 95 90 2561 2696 100 750 35 36 37
17.85*17.85/14MM 3000K 95 90 2668 2808 104 750 35 36 37
17.85*17.85/14MM 3500K 95 90 2748 2892 107 750 35 36 37
17.85*17.85/14MM 4000K 95 90 2774 2920 108 750 35 36 37
17.85*17.85/14MM 5000K 95 90 2721 2864 106 750 35 36 37
17.85*17.85/14MM 6000K 95 90 2694 2836 105 750 35 36 37
Absolute Maximum Ratings
Parameter Symbol Rating
Forward Current IF 1200mA
Reverse Current IR 1mA
Operating Temperature TOPR -30℃ To +75℃
Storage Temperature Tst -30℃ To +75℃
Case Temperature Tc 85℃
Junction Temperature TJ 125℃
Soldering Temperature TSOL 350℃± 10℃ For 5 Seconds
ESD Sensitivity ESD 2000V HBM

Application

36V 24W 30W 36W 42W US Bridgelux 4000K CRI98 High Cri LED Chip36V 24W 30W 36W 42W US Bridgelux 4000K CRI98 High Cri LED Chip

36V 24W 30W 36W 42W US Bridgelux 4000K CRI98 High Cri LED Chip

Customers feedback

1. Good product, does need a heat sink if your going to run full blast for any length of time. Bright for power consumption.

2. My customer is so happy with this lighting. The leds are bright and a great white shade., not blue or amber. Most importantly they are a solid light, no dots. Looks very high end. This is the only led strip lighting I will install from now on.

3. I have used a ton of other products from skye and this is by far my favorite. It looks awesome without all the individual diodes. I used a 24V transformer and made sure the wattage was rated higher that the 3w per ft I planned to use. These bend much tighter and are more flexible than other brands if used as well. I combine these with aluminum channels I buy from amazon to make them look like a fixture, including inside and outside corners.
Awesome light

4. These lights are excellent! Very well made and stick very well. The look behind my tv is freaking awesome! I cant tell you how much better my living room looks now! Definitely a great choice, will buy more!

5. I normally don't write reports but I was surprised for good about this product. Unbelieved brightness. Consider using a dimmer to control the bright. For sure I will buy a few more for my home project.
