3W 460-465nm Blue Led Spectrum 3535SMD LED Epileds Chip Quartz Glass UV SMD Used In Garden Light/Plant Growth lighting
Specification
Our 3535 SMD LED are the same size as XLamp XP-G2/XLamp-E2, there have different wavelengthes, such as white, 380-385NM, 400-405NM, 420-425NM, 440-445NM, 450-455NM, 460-465NM, 470-475NM, 500-505NM, 520-525NM, 620-625NM, 660-665NM, 740-745NM... ect.
- Blue LED spectrum: can ensure that plants absorb more energy through chlorophyll synthesis, which leads to germination.
- Red LED spectrum: helps to germinate effectively, flower and enhance photosynthesis, so as to obtain better results.
- Mixed spectrum: The balanced spectrum of red and blue can optimize the growth stage of seeds and plants.
Product Description
| Product Information |
| Item | 3W Plant growth lighting |
| Product name | 3535 package SMD LED |
| Power | 1-3W |
| Voltage | 3-3.2V |
| Wavelength | 460-465NM/470-475NM |
| Chip Material | InGaN |
| Beam Angle | 120 |
| Current | 350-600NM |
Optical－Electrical Characteristic: (TA=25℃)
| Parameter | Symbol | Test Condition | Min | Type | Max | Unit |
| Forward Current | VＦ | IF=700mA | 2.8 | 3.2 | 3.8 | V |
| Reverse Current | ＩＲ | VR=5V | / | / | 2 | Va |
| Dominant Wavelength | λd | IF=700mA | 457.5 | 525 | 470 | nm |
| LED | TA | IF=700mA | 100 | 120 | 150 | °C |
| Luminous Flux | Φ | IF=700mA | 20 | 30 | 40 | lm |
| Viewing Angle | 2θ1/2 | IF=700mA | / | 140 | / | dfg |
Absolute Maximum Ratings:(TA=25℃) :(TC=25℃)
| Parameter | Symbol | Maximum Rating | Unit |
| Peak Forward Current | IFp | 1000.00 | mA |
| Forward Current | IF | 700.00 | mA |
| Reverse Voltage | VR | 5.00 | V |
| Power Dissipation | PD | 3000.00 | mW |
| Operating Temperature | Topr | －40~+85 | ℃ |
| Storage Temperature | Tstg | －40~+85 | ℃ |
| Electrostatic Discharge | ESD | 2000.00 | V |
| Soldering Temperature | 260℃ for 5 seconds |
| Lead soldering Temperature: 260℃ for 10 seconds |
Product Brief
1. This white colored surface-mount LED size in standard package: 3.45*3.45mm
2. The L35 Series is designed for high flux output applications with high current operation capablity.
3. The L35 series uses the eutectic technology, with low thermal resistance and high reliablity
Features And Benefits
1. High lumen output and efficacy
2. Designed for high current operation
3. Low thermal resistance
4. High color quality with CRI min.80
Key Applications
1. Indoor lighting
2. Outdoor lighting
3. Automotive
4. Architectural lighting
5. Industrial lighting
6. Portable torch
7. Plant growth lighting
The Plant growth lighting is convenient for a number of potted landscape and indoor garden plants that include;
- A variety of flowering plants that include roses, chrysanthemum, peony, tulip and many others.
- All greens like tomatoes, chili, choy, herbs etc.
- All succulents including ball cactus, burros tail, dudleya, ball cactus, and others.
Related specifications
| Plant growth lighting |
| Size | Wavelength | Power | Voltage | Current | Beam Angle |
| 3535 package | 6000K/4000K/3000K | 1-3W | 3-3.2V | 350-600mA | 120º |
| 380-385NM | 1-3W | 3.6V | 350-600mA | 120º |
| 400-405NM | 1-3W | 3-3.2V | 350-600mA | 120º |
| 420-425nm | 1-3W | 3-3.2V | 350-600mA | 120º |
| 440-445nm | 1-3W | 3-3.2V | 350-600mA | 120º |
| 450-455nm | 1-3W | 3-3.2V | 350-600mA | 120º |
| 460-465nm | 1-3W | 3-3.2V | 350-600mA | 120º |
| 470-475nm | 1-3W | 3-3.2V | 350-600mA | 120º |
| 500-505nm | 1-3W | 3-3.2V | 350-600mA | 120º |
| 520-525nm | 1-3W | 3-3.2V | 350-600mA | 120º |
| 620-625nm | 1-3W | 3-3.2V | 350-600mA | 120º |
| 660-665nm | 1-3W | 3-3.2V | 350-600mA | 120º |
| 740-745nm | 1-3W | 3-3.2V | 350-600mA | 120º |
Trade Show
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
Product Tags:
|
|

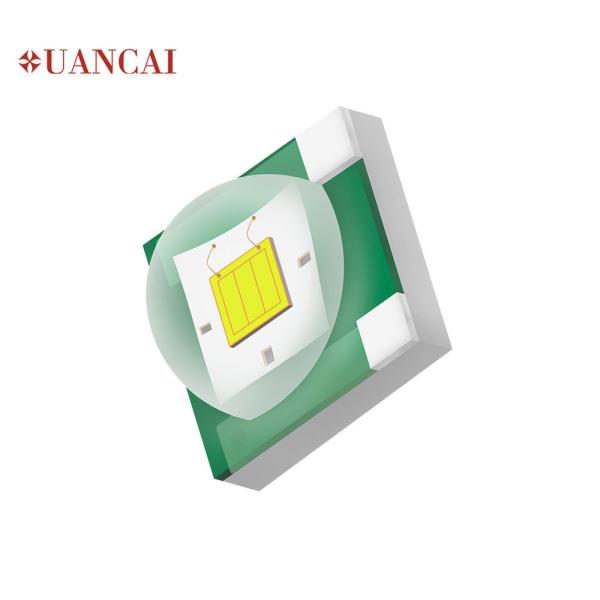

460NM SMD 3535 Led Chips Images
|
